RG-AP820-L(V2) Wireless Access Point
Overview Specification Technical Library
RG-AP820-L(V2) is the Ruijie’s highest price-performance entry Wi-Fi 6 enterprise indoor access point. Certified by Tolly’s latest Test Report , the RG-AP820-L(V2) verified on user capacity upto 1024 Wi-Fi clients, and provide upto 65% higher total throughput in legacy Wi-Fi 5 environment.
The Ruijie RG-AP820-L(V2) supports selectable dual-band dual-radio (2.4G + 5G or 5G+5G) mode to guarantee for the best compatibility and highest performance. Maximum of 2.4Gbps wireless throughput when dual 5G radio high-performance mode adopted, and upto 1.775Gbps throughput at normal 2.4G+5G mode. The RG-AP820-L(V2) fully comply with Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, allowing RG-AP820-L(V2) guarantees minimal signal interference and a maximum of 1024 client connections.
Additionally, RG-AP820-L(V2) is IoT ready with integrated module of BLE, without the need of external module and additional investment. Verified by Tolly Test Report, RG-AP820-L(V2) providing nearly line-rate throughput at 955Mbps wireless performance by built-in Gigabit uplink port.
Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:
  • Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.
  • Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.
  • Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.

Key Highlights:

Tolly Certified Performance & Capacity
Max 2.4Gbps by selectable Dual-Band Design (2.4G + 5G or 5G+5G)
Max 1024 Client connections
OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
AI Wireless Optimization: one-click optimization powered by Ruijie Cloud technology
Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

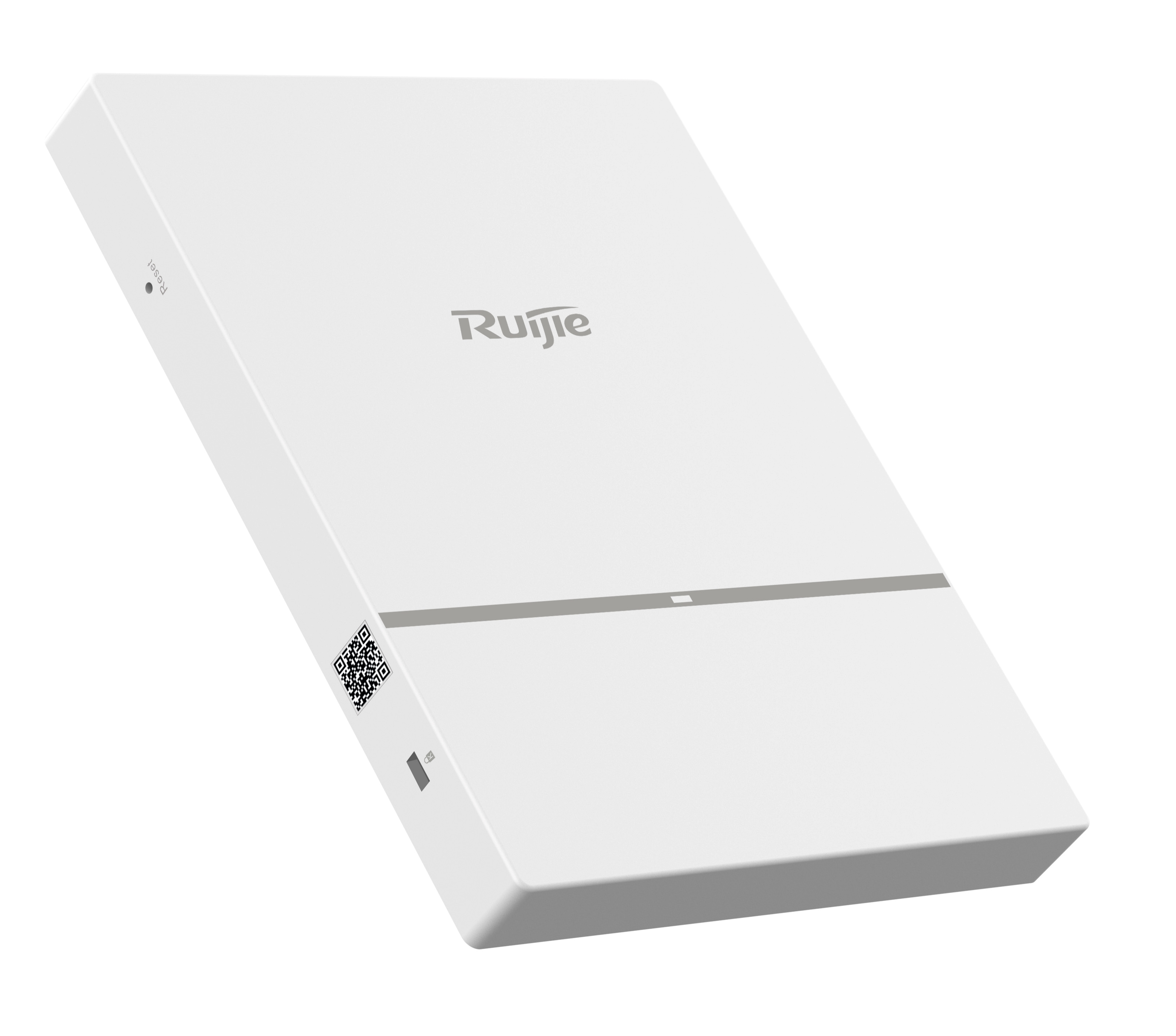

New Stylish Design

The Ruijie RG-AP820-L(V2) applies Ruijie new style diamond square design with only 26mm in height.  The APs feature an integrated antenna design and hidden LAN port along with hidden cabling to hide the messy wires, which gives a professional and simplistic deployment style that is less noticeable.




RG-AP820-L(V2) designed with slim form factor design , only 26mm in height (Left);

Hidden LAN Port design (right)

Wi-Fi 6 Technology

11024-QAM High-speed Access

The RG-AP820-L(V2) adopts the dual-radio dual-band design and 2G+5G is recommended. With the next-generation 802.11ax for 5G, the maximum access rate can reach 4.8Gbps. If dual-radio is enabled concurrently, the high-speed Wi-Fi can reach 5.2Gbps, offering the true high-speed experience.

OFDMA High-density User Access

The RG-AP820-L(V2) supports OFDMA of 802.11ax, which divides the WLAN channel into a plurality of narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency. In a high-density deployment environment, the average rate per user is increased to four times of 802.11ac.

Bi-Directional MU-MIMO

Compared with the previous Wi-Fi 5 (802.11ac) with only downlink MU-MIMO support, Wi-Fi 6 supports both uplink and downlink MU-MIMO(multi-user, multiple-input and multiple-output). Therefore, Ruijie RG-AP800 Series access points can connect clients simultaneously, significantly improving the wireless performance and experience.

TWT(Target Wake Time)

Target wake time (TWT) is used to help minimize contention between clients and reduce the amount of time a client in power save mode to be awake. Energy consumption is reduced by up to 70% of the battery consumption, thereby improving battery life.

Spatial Reuse with BSS Color

The RG-AP820-L(V2) supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of the external BSS. If the signal strength is lower than the receiving threshold of the external BSS, the packet will be ignored. The transmission of the internal BSS packet will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.


Tolly Certified Capacity & Performance

Verified Wireless Performance

“Ruijie RG-AP820-L(V2) is a cost-effective Wi-Fi 6 AP which supports 2x2 MIMO on both 5GHz and the 2.4GHz radio.” quoted in the Tolly Report. From latest Tolly Test Report, RG-AP820-L(V2)’s 5GHz radio delivered 955Mbps downstream, throughput. RG-AP820-L(V2)’s 2.4GHz radio delivered 424Mbps downstream throughput or 433Mbps upstream throughput.

Ruijie RG-AP820-L(V2)’s results are higher than Huawei’s comparable AP AirEngine 5760-10’s results in the same test conditions.

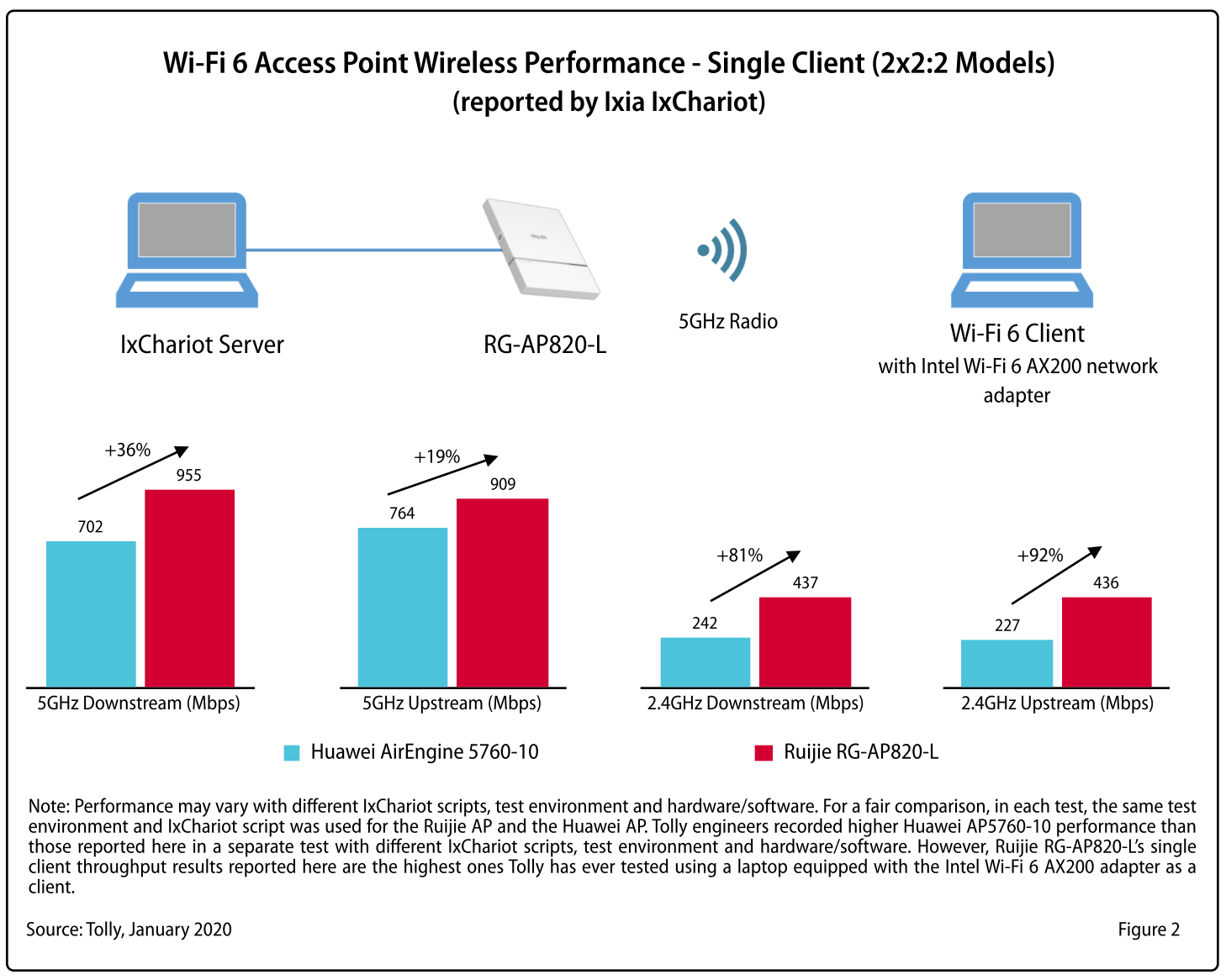

 Tolly Test Report on Ruijie AP820-L(V2) (Wi-Fi 6) Single Client Performance
versus Huawei AP AirEngine 5760-10


Guarantee User Capacity

From latest Tolly Test Report, Tolly engineers verified Ruijie Wi-Fi 6 AP800 Series each supported upto 1024 Wi-Fi clients/users on one AP with 512 Wi-Fi clients/users on each radio.

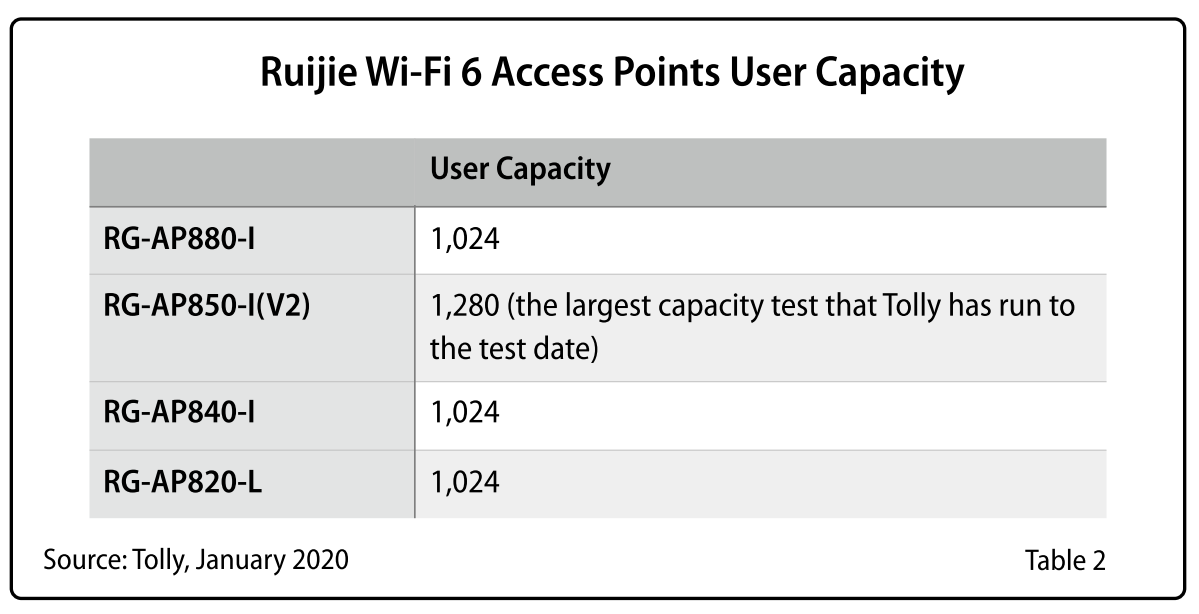

Tolly Test Report on Ruijie Wi-Fi 6 AP800 Series User Capacity


Performance Boost in Wi-Fi 5

Understanding Wi-Fi 6 still new in the market, majority mobile devices only support Wi-Fi 5. We invited Tolly to do a evaluation on Ruijie’s Wi-Fi 6 RG-AP820-L whether there are improvement in Wi-Fi 5 user environment.

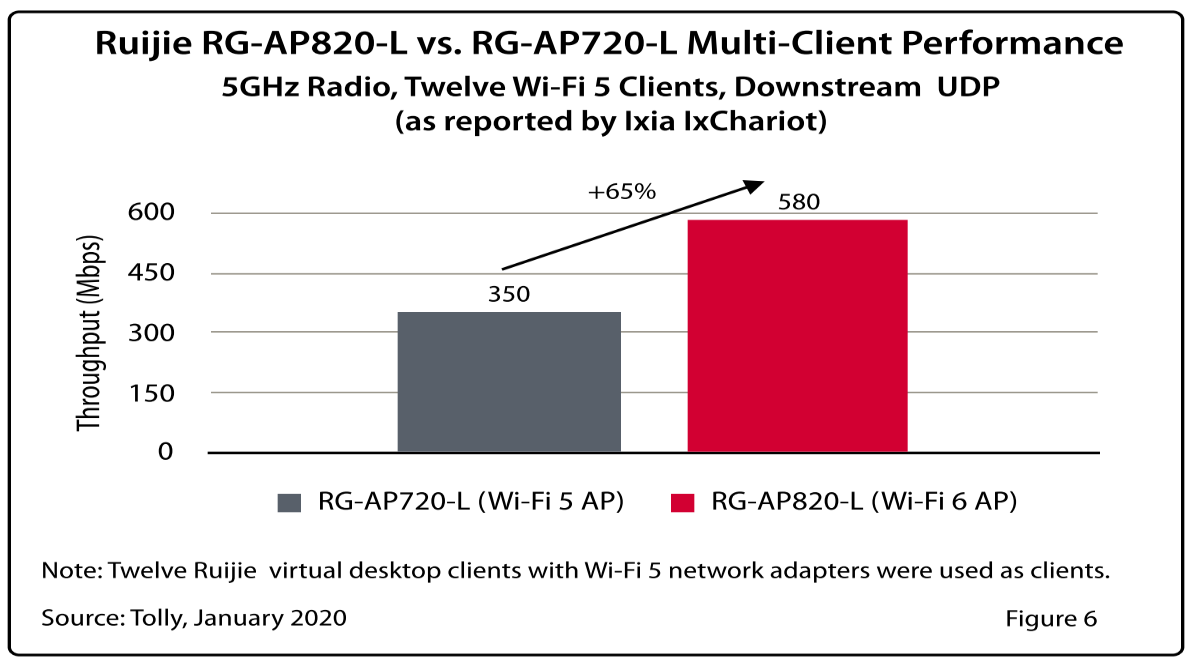

Result below show that RG-AP820-L(V2) provide 65% higher total throughput than the RG-720-L (Wi-Fi 5 Wave 2) access point in legacy Wi-Fi 5 environment.

“Ruijie’s Wi-Fi 6 APs are not only future-proof but also able to provide instant improvement over the Wi-Fi 5 APs” commented by Tolly engineers in the report.

Tolly Test Report on Ruijie AP820-L(V2) Performance in Wi-Fi 5 environment



Wi-Fi 6 Equipment For All Scenarios:
Always One Option Fit For You

Ruijie is one of the leading enterprise networking suppliers worldwide and committed to providing the best Wi-Fi experience to our stakeholders. We are the first supplier to provide full-scenario Wi-Fi 6 access point solution in the market, ranging from indoor, wall plate to outdoor access points, guaranteeing perfect wireless experience in various situations.

For details, please visit


AI Wireless Optimization

With advent of Ruijie Cloud AI Engine, this is an Lifetime Free service for all Ruijie Enterprise AP for WiFi optimization on the cloud. Not just the Cloud Managed AP, Ruijie Cloud also seamlessly integrated with Ruijie hardware Wireless Access Controller (AC) on premise, it helps to streamline Wi-Fi maintenance and operation support. With Ruijie Cloud AI Wireless Optimization you can achieve:

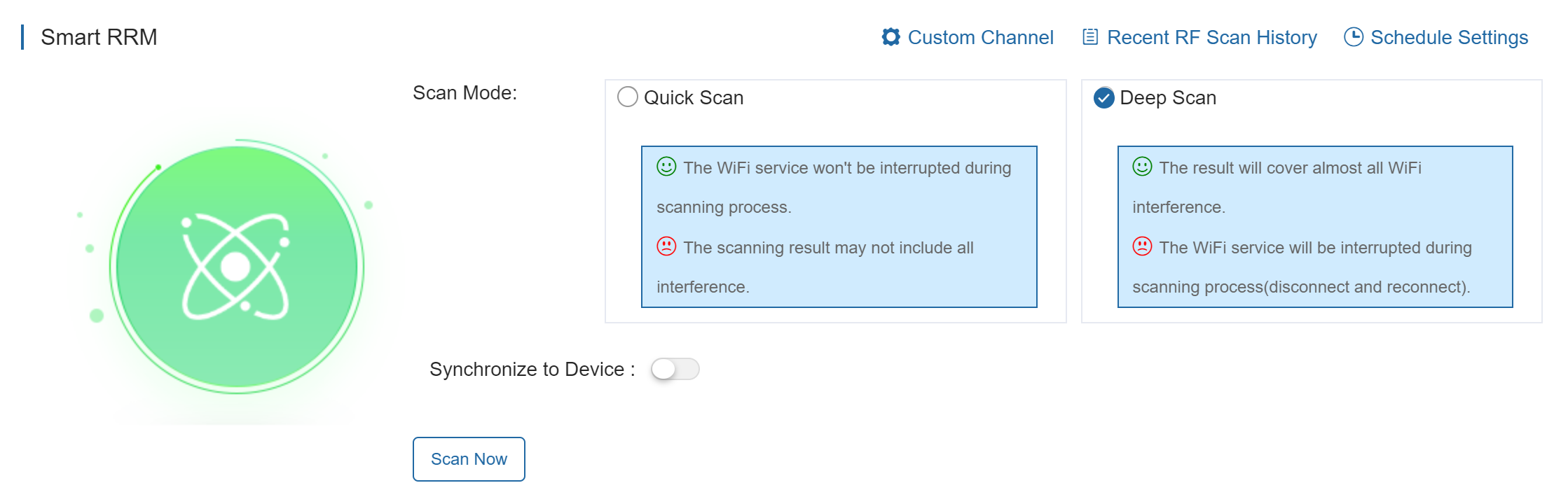

Ruijie Cloud AI Wireless Optimization


  1. 1-click Analysis and Wireless Optimization
  2. Scheduling Task for Optimization
  3. Smart mobile apps for optimization
  4. Report for optimization improvement
  5. and it is FREE!

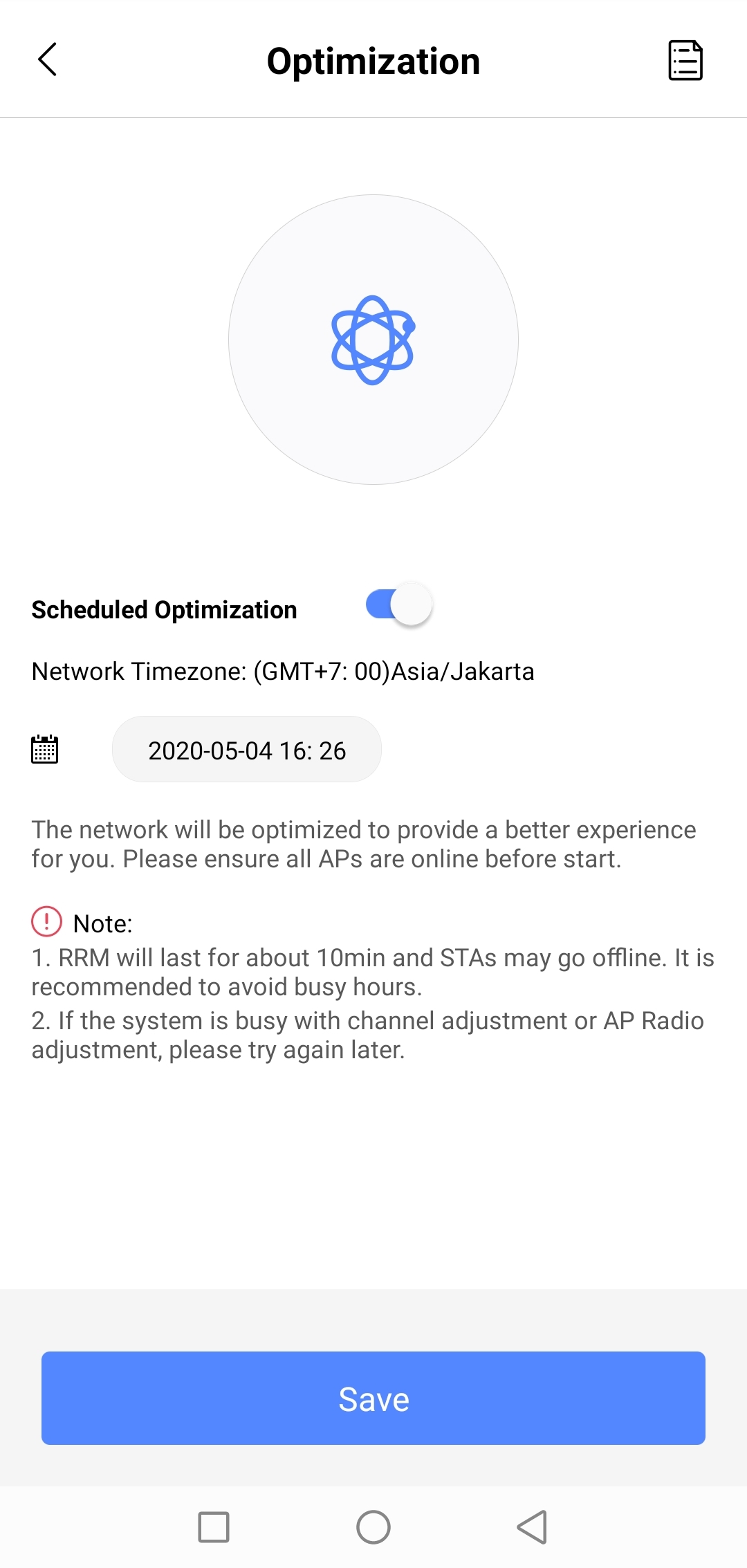

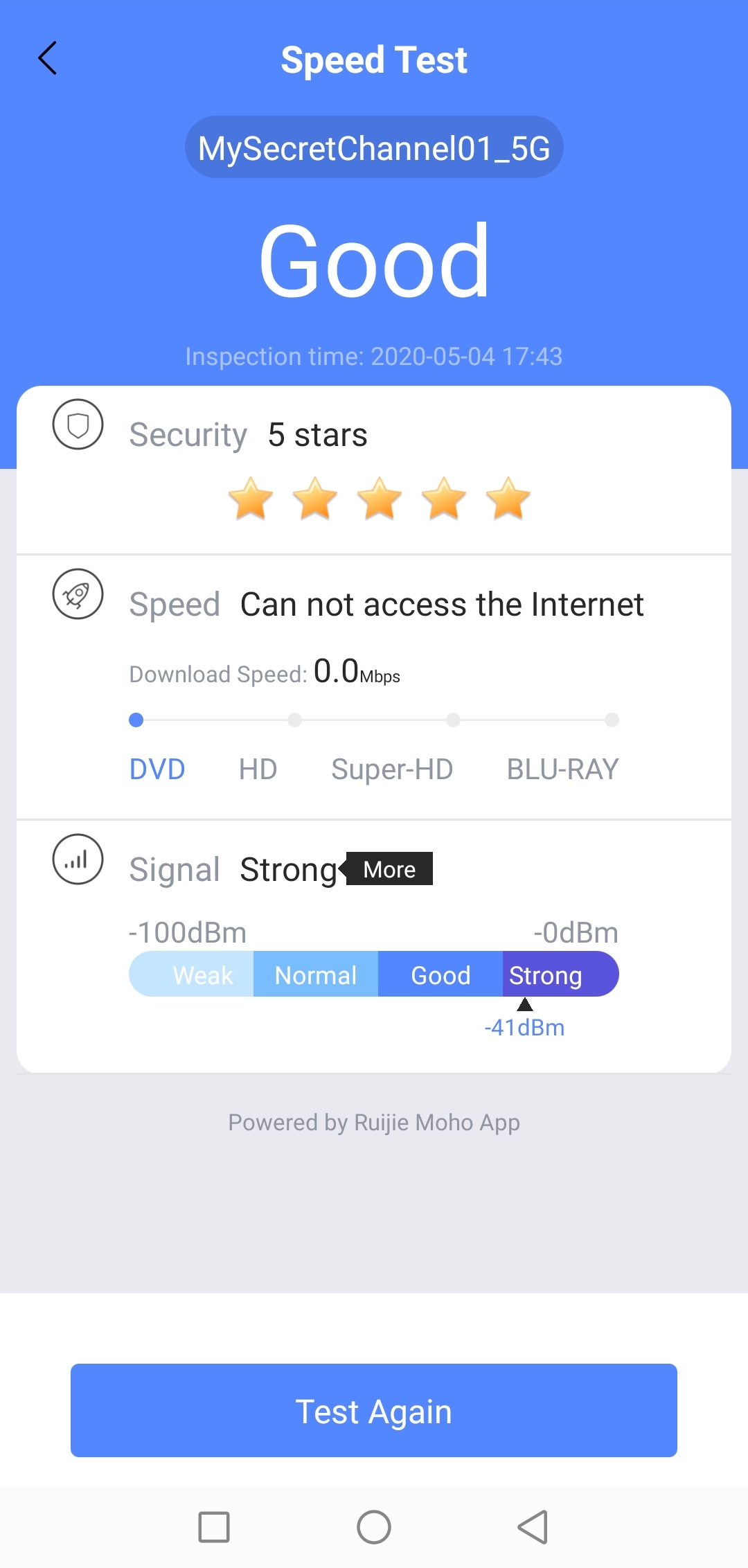

Ruijie Cloud App for Wi-Fi Inspection (Left) & Wireless Optimization (Right)

As part of the Ruijie Cloud solution, Ruijie Cloud App is a mobile App designed to carry out Ruijie managed device management at your fingertips. Comprehensive monitoring, configuration and troubleshooting tools including Network Inspection, 1-click Optimization, Device Topo, etc. are available in the Ruijie Cloud App, which can be freely downloaded from the iOS App Store and Google Play.

Industry-leading Local Forwarding Technology

Employing an industry-leading local forwarding technology, the RG-AP820-L(V2) breaks through the limitation of traffic bottleneck of wireless controllers. In collaboration with the RG-WS Wireless Controller Series, users can flexibly pre-configure the data forwarding mode for RG-AP820-L(V2). The AP also controls whether the data will be forwarded via the wireless controller according to the SSID or user VLAN, or directly sent to the wired network for data exchange.

The local forwarding technology can classify and forward delay-sensitive data which requires real-time transmission through the wired network to greatly alleviate the traffic pressure on the wireless controllers and better meet the high traffic transmission requirements of the 802.11ax network.

Abundant QoS Policies

The RG-AP820-L(V2) supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations and Wi-Fi multimedia (WMM) which defines different priorities for different service data. The RG-AP820-L(V2) realizes timely and quantitative transmission of audio and video, and guarantees smooth operation of multi-media applications.

With the multicast-to-unicast technology, the RG-AP820-L(V2) resolves the video lagging problem due to packet loss or high latency in the wireless network, and highly enhances user experience of the multicast video services of wireless network.


Comprehensive Security Protection

Secure User Access

The RG-AP820-L(V2) supports a wide range of authentication methods such as web, 802.1x, PPSK (one-time dynamic password for staff), voucher/ access code, user account, and social authentication. Complying with the standard network access control, it offers a set of control policies in terms of user access, authorization, equipment compliance check, network behavior monitoring, network attack prevention, etc. All these control features guarantee high network security for authenticated users.

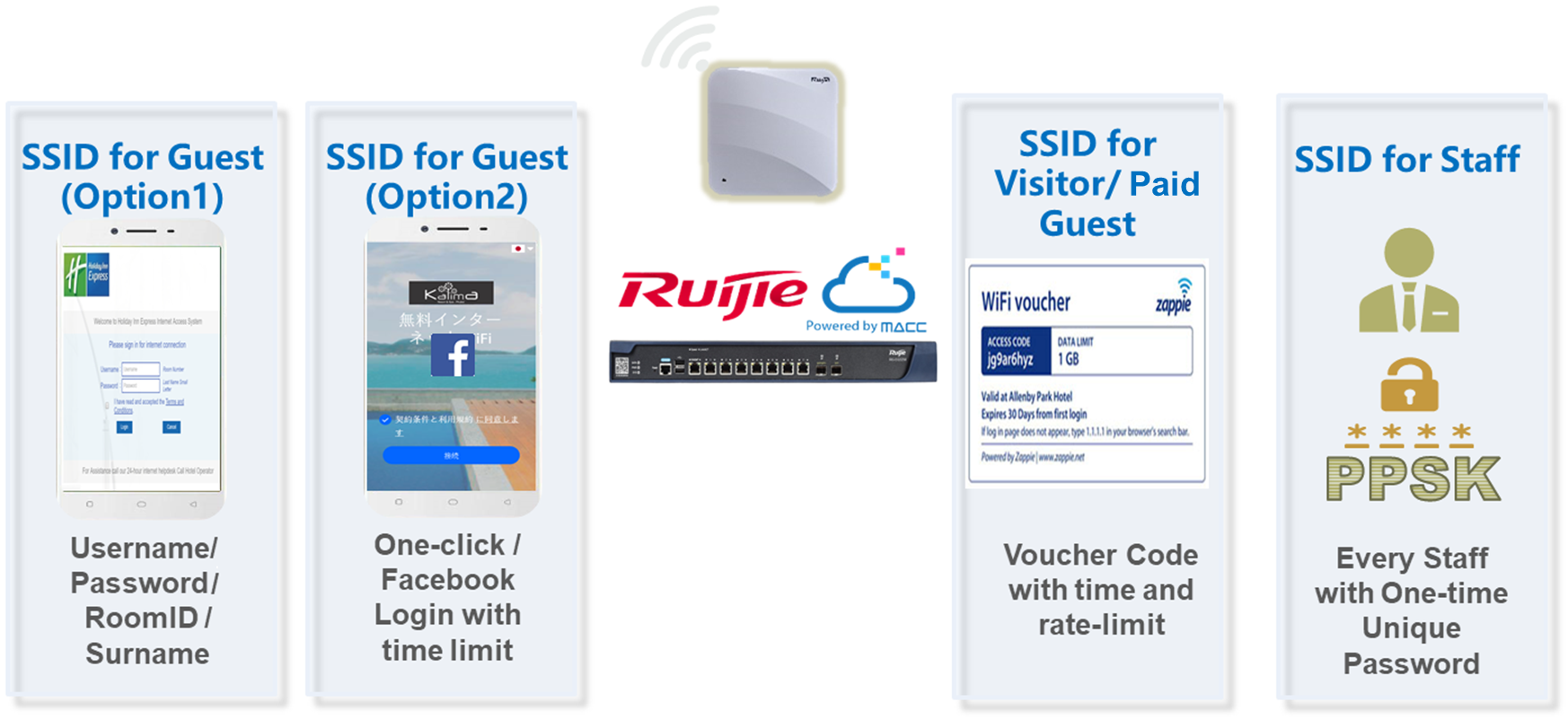

Various enterprise authentication options for guests and employees

Personal Pre-shared Keys (PPSK)

   Simple and Effective Wireless Security Practice

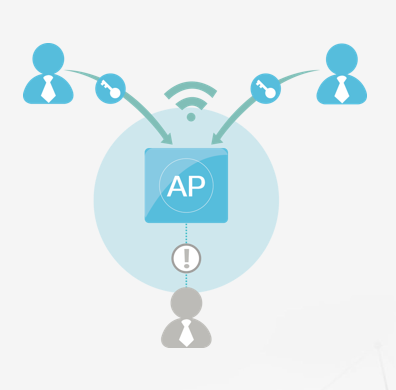

Traditional Pre-shared Keys (PSK) are shared by all users on a WLAN, giving it potential risk of PSK leak-out.

Ruijie Personal PSK (PPSK) is an easy-to-setup wireless authentication method with enterprise-grade security level. Credentials can be created and revoked individually. Each PPSK can also be tied to a unique user/ machine.

With PPSK, you can enjoy the benefits of:

  • High security by using different passwords for each user and device for individual SSID
  • Simple deployment with batch account creation
  • Ease of use, offering the same experience as WPA / WPA2-PSK
  • Out-of-box feature in Wireless Access Controller (AC) and Ruijie Cloud Service
  • No additional AAA required

Virtual AP Technology

With the virtual AP technology, the RG-AP820-L(V2) supports up to 32 ESSIDs. Network administrator can separately encrypt and isolate VLANs or subnets of the same SSID, thereby enabling specified authentication mode and encryption mechanism for each SSID.

Comprehensive Wireless Protection

Coupled with RG-WS6000 Series or RG-MACC Wireless Controllers, the RG-AP820-L(V2) offers a breadth of security features including WIDS (Wireless Intrusion Detection System), RF interference tracking, rogue AP containment, anti-ARP spoofing, DHCP protection and beyond for all-around security protection.

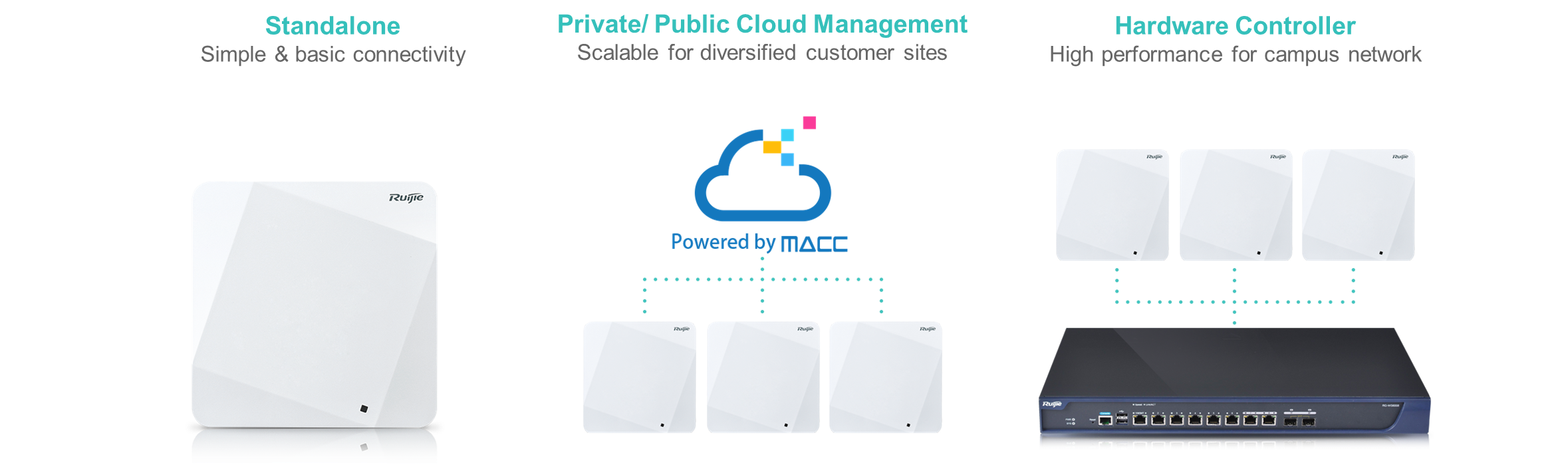

Hybrid Management

Flexible Management Options

All Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit and MACC mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of below wireless controller options depending on the functionality and capacity:

Below are the summarized feature highlights for various Ruijie management system options which target for specific industry segments:


Standalone AP

Hardware Controller (RG-WS6000)

Public Cloud

Private Cloud
(RG-MACC Base)

Target Segment

Small Office

Enterprise, Education, Large Campus

Small & Medium Business, Managed Service Provider

Operator, Gov

Deployment Mode



Cloud Service


Device Capacity


Up to 5000

Virtually Unlimited

Virtually Unlimited

Unified Management


AP only

AP, Switch, Gateway

AP, Switch, Gateway

Radio Optimization


(required to enable AC Hybrid Mode)



Employee Authentication

Basic PSK

PSK, PPSK, 802.1x

PSK, PPSK, 802.1x, Access Code, Account

PSK, PPSK, 802.1x

Guest Authentication

Basic PSK

Basic Captive Portal

Captive Portal (Customized), Social Login, Voucher

Basic Captive Portal






Mobile App (Free)


(required to enable AC Hybrid Mode)




Web and CLI Management Interface

The RG-AP820-L(V2) provides both web and command-line interface (CLI) for the AP and wireless controller, suitable for application in different scenarios. CLI design allows the networking professionals to perform fast troubleshooting, bulk configuration import or modification. Web GUI mangaement should be perfect for the majority of general scenarios to plan, operate and maintain the wireless network without the need of customization.

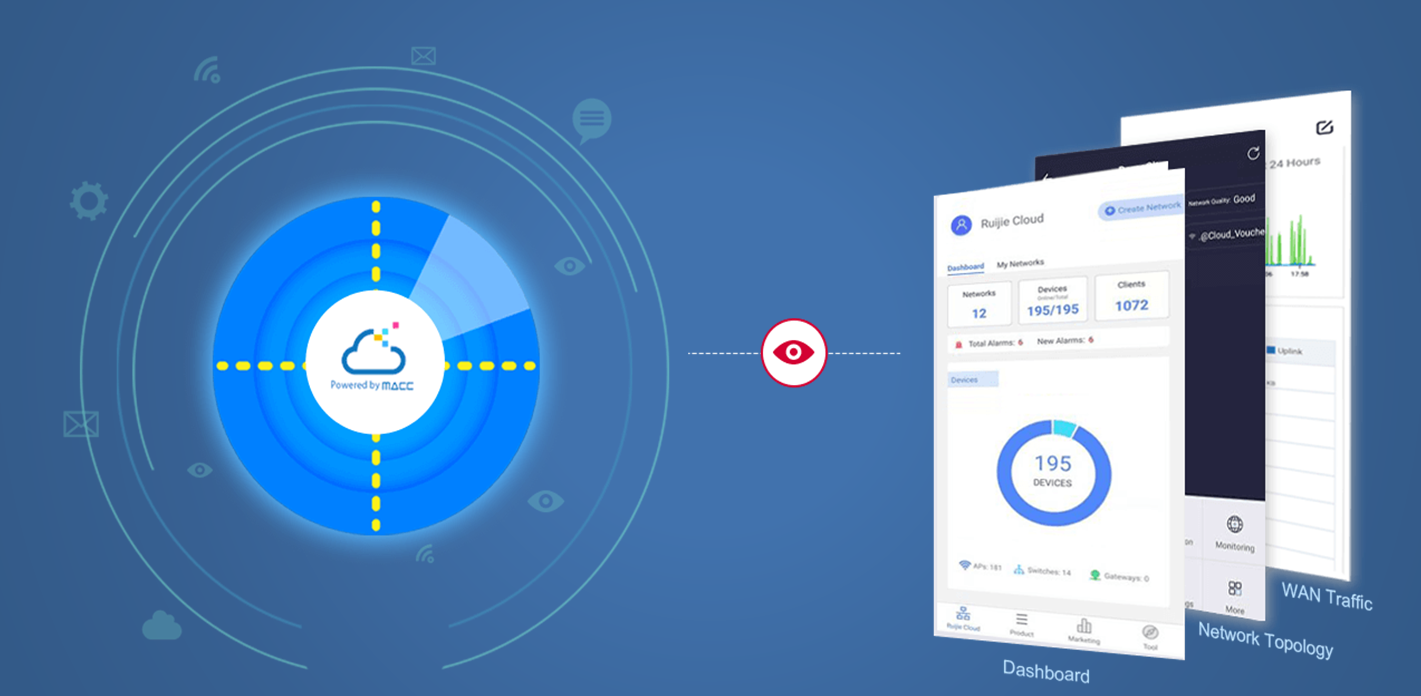

Mobile Monitoring and Optimizing

Ruijie is committed to providing more simple networking experience for customers by launching a free mobile app[3] (namely Ruijie Cloud) for unified device lifecycle managmeent, which is not only for Ruijie access points, but also for switches and security gateways, from provisioning, monitoring, configurations to optimization. For details, please visit our official website at

Antenna Patterns

Horizontal planes (top view)

Below are the RG-AP820-L(V2) 2.4GHz and 5GHz azimuth antenna patterns:

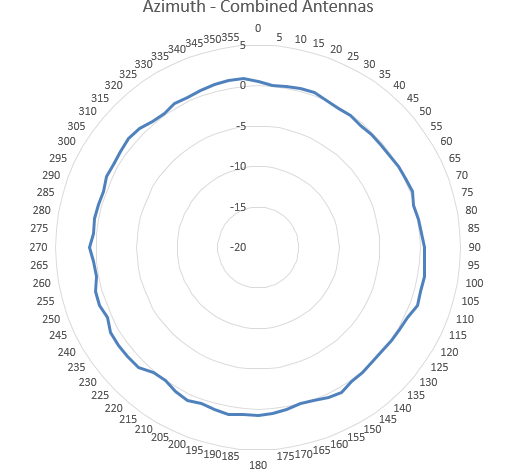

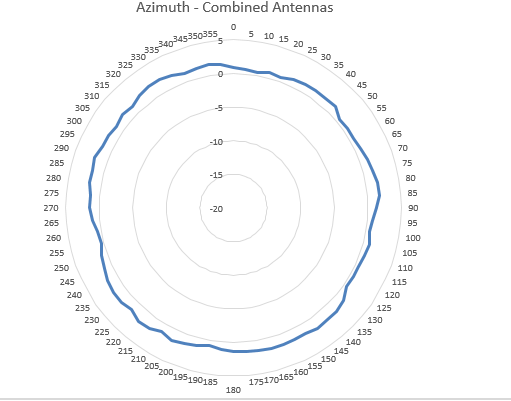

RG-AP820-L(V2) 2.4GHz (Left) and 5GHz (Right) Azimuth Antenna Patterns

Vertical (elevation) planes (side view, AP facing down)

Below are the RG-AP820-L(V2) 2.4GHz and 5GHz elevation antenna patterns:

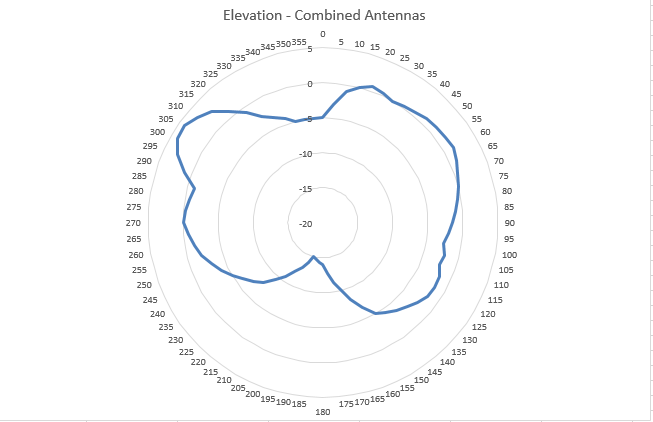

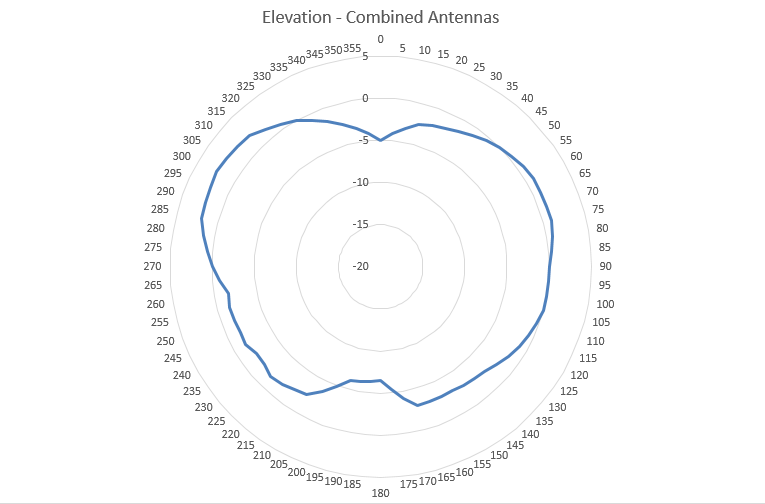

RG-AP820-L(V2) 2.4GHz (Left) and 5GHz (Right) Elevation Antenna Patterns


Warranty Information

The Ruijie RG-AP820-L(V2) Access Point come with 3 year warranty. For more details, please visit







Wi-Fi 6 (802.11ax) indoor wireless access point, selectable dual-band (5G+5G or 2.4G+5G), up to 4 total spatial streams and maximum 2.4Gbps wireless throughput, 1 10/100/1000BASE-T uplink port, integrated with BLE, support PoE and local power supply; Bundled with Ruijie Cloud Service lifetime license

(PoE adapters are sold separately, which could be purchased from Ruijie while DC Power adapters should be purchased from third-party vendors separately if needed)


1-port PoE adapter (1000Base-T, 802.3af)




Hardware specifications


Dual-radio dual-band:

Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO

Radio 2: 5G 11ax: 2x2 MIMO


Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac

Operating Bands

802.11b/g/n/ax :2.4G ~ 2.483GHz

802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)

Spatial Streams

Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz

Max Throughput

Maximum throughput (5G+5G mode) per AP: 2.4Gbps

Radio1:5G low band 1.2Gbps

Radio2:5G high band 1.2Gbps


2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps

Radio1:2.4G 0.574Gbps

Radio2:5G 1.2Gbps



DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps


OFDMA (up to 1024-QAM)

Receiver Sensitivity




11ac HT20:-88dBm(MCS0), -63dBm(MCS9)

11ac HT40:-85dBm(MCS0), -60dBm(MCS9)

11ac HT80:-82dBm(MCS0), -57dBm(MCS9)

11ax HT80:-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)


Integrated antenna design

Antenna Gain

2.4G: 3dBi

5G: 3dBi

Service Ports

1 10/100/1000M Ethernet ports, PoE In

Management Port

1 console port

Reset Button


Anti-theft Lock


LED Indicator

1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)

Transmit Power

≤100mw(20dBm) (vary depending on different countries)

Adjustable Power


Power Supply

Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed)

PoE (802.3af) – full spectrum operation

Power Consumption


Physical Specifications


Operating Temperature: -10°C to 50°C

Storage Temperature: -40°C to 70°C


Operating Humidity: 5% to 95% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Installation Mode


Dimensions (W x D x H)

153mm ×193mm x26mm(Height of the AP only, excluding the mount kit)


≤0.5kg (include mount kit)

IP Rating



250,000 hours

Certifications and Compliance

Wi-Fi Alliance

· Wi-Fi CERTIFIED™ a, b, g, n, ac


· WPA3™-Enterprise, Personal

· Wi-Fi Enhanced Open™

· Wi-Fi Agile Multiband™

· WMM®

Safety Standard

GB4943, EN/IEC 62368-1

EMC Standard

GB9254, EN301 489

Radio Standard

SRRC, EN300 328, EN301 893

Software Specifications


Maximum clients per AP


BSSID capacity

Up to 32

SSID hiding


5G Priority (Band Steering)


Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID


Remote Intelligent Perception Technology (RIPT)


Intelligent device recognition technology


Intelligent load balancing based on the number of users or traffic


STA control


Bandwidth control

STA/SSID/AP-based bandwidth control

Data encryption

WPA(TKIP), WPA-PSK, WPA2(AES), WPA3, WEP(64/128 bits)

PSK and web authentication


PPSK authentication (For Employee)

Support (require wireless controller)

802.1x authentication


PEAP authentication


Data frame filtering

Whitelist, static/dynamic blacklist

User isolation


Rogue AP detection and countermeasure


Dynamic ACL assignment




CPU Protection Policy (CPP)


Network Foundation Protection Policy (NFPP)



IPv4 and IPv6 address


Multicast routing

Multicast to unicast conversion

DHCP service

DHCP Snooping, Option 82, Server, Client

Management and Maintenance

Supported wireless LAN controllers

Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocol

Telnet, SSH, TFTP, Web

Wireless Intelligent AI Optimization Service (WIS)






Syslog / Debug


FAT/FIT/MACC mode switching

Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
